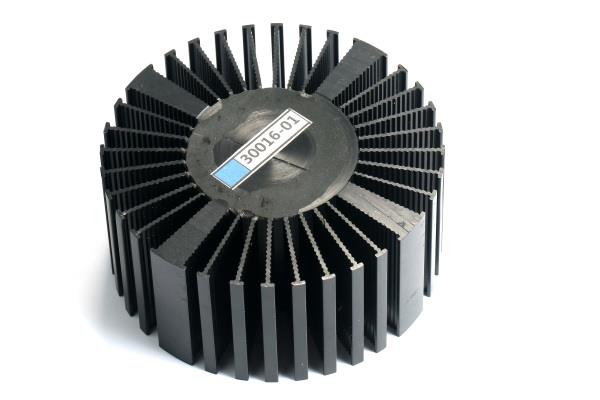

微槽群复合相变LED散热器系列

MICROGROOVES COMBINED PHASE-CHANGE LED COOLER SERIES

重量轻，体积小

比同功率的传统型材散热器的重量轻30％以上，体积小30％～60％。

Light Weight and Small Volume

Over 30% lighter and 30﹪～60﹪ smaller than traditional same-power aluminum extrusion coolers.

均温性出色

肋片表面上下温差小于2℃。

Excellent Temperature Uniformity

The temperature difference of fin is less than 2℃.

散热效果优越

微槽群取热结合肋片对流优化设计技术，比同功率的散热器温升要低5℃-15℃。

Good Cooling Effect

Microgrooves use design technology of fin convection optimization to remove heat. Compared with same-power cooler, the temperature rise is lower 5℃～15℃.

取热能力超强

取热热流密度可达到400 W/cm2  ，其能力极限比水冷高1000倍，比热管高约100倍。

Ultra-strong Cooling Capability

The heat flux of heat removal can reach 400 W/cm2. Its cooling capability is 1000 times higher than forced water cooling and 100 times higher than heat pipe.

中科院国家863成果—微槽群复合相变散热技术

Microgrooves Combined Phase-change Cooling Technology from National 863 Program of CAS

适用灯种:筒灯、球泡灯、轨道灯

Applicable Scope:Down Light，Bulb Light，Track Light

适用灯种: 工矿灯、路灯

Applicable Scope: High Bay Light, Street Light

适用灯种:工矿灯、投光灯、高杆灯

Applicable Scope:High Bay Light,, Flood Light, High Pole Light

技术参数表

Technical Parameters Table

产品型号

标称功率

Nominal Power

最大电源功率

Max Power

直径×高度

Diameter×Height

重量

Weight

标准温升

Standard Temperature Rise

材质

Material

JH10-4

30 W

35W

Φ100×45mm

0.35 kg

?35±2℃

铝6063

Al 6063

JH10-7

40 W

45 W

Φ100×70mm

0.57 kg

JH10-10

50 W

55W

Φ100×100mm

0.71kg

JH16-4

50 W

55W

Φ160×40mm

0.7kg

?35±2℃

铝6063

Al 6063

JH16-10

100 W

110 W

Φ160×100mm

1.5 kg

JH16-13

120 W

130 W

Φ160×130mm

1.9 kg

JH24-7

150 W

160W

Φ240×70mm

2.3kg

?35±2℃

铝6063

Al 6063

JH24-10

200 W

210W

Φ240×100mm

3.0kg

JH24-16

300 W

320W

Φ240×160mm

4.5kg

JH24-22

400 W

420W

Φ240×220mm

5.8kg

JH24-28

500 W

520W

Φ240×280mm

6.8kg

注（Note)：

1. 测试条件：环境温度为25℃。

   Test condition: The environment temperature is 25℃.

2. 小于100W，Cree光源；≥100W恒日光源。

   Cree light source (＜100W)；Light source of Lighten Corp (≥100W).

3. 明纬驱动。

   Mean Well driver.
